The Elina Pilates Aluminium Reformer HL-3 is a modern, high-performance Pilates reformer engineered for commercial fitness studios, physical therapy clinics, and boutique home gyms. Crafted from high-strength anodized aluminum alloy paired with clean wooden accents, this durable model features a mid-height 42 cm (16.5-inch) bed elevation designed to offer comfortable accessibility and easy mounting for clients during rehab and studio sessions.
Equipped with an ultra-quiet 8-wheel polyurethane carriage glide system, a 4-position adjustable footbar, and height-adjustable aluminum pulley towers, the HL-3 ensures frictionless movement and rapid adjustability. Complete with dense foam padding, heavy-duty grey vinyl upholstery, and an integrated standing platform, this self-contained system offers versatile exercise performance with minimal maintenance demands.
Key Product Features & Core Technology
-
Mid-Height 42 cm (16.5 in) Bed Elevation: Elevated 42 cm carriage height provides an optimal balance for easy mounting and unmounting, making it ideal for clinical rehab and general studio training.
-
Anodized Aluminum Frame: High-strength anodized aluminum structure delivers a sleek, modern aesthetic while offering maximum resistance against rust, corrosion, and heavy daily wear.
-
Ultra-Quiet 8-Wheel Carriage System: Eight precision polyurethane wheels mounted on sealed ball bearings ensure a frictionless, whisper-quiet carriage glide along internal aluminum tracks.
-
4-Position Adjustable Footbar: Padded, non-slip footbar adjusts quickly across four distinct vertical angles to accommodate users of varying flexibility levels and torso lengths.
-
5-Spring Precision Resistance Assembly: Features five color-coded, high-grade alloy springs (2 Strong Red, 2 Medium Green, 1 Light Yellow) paired with a 3-position spring bar for customized tension adjustment.
-
Height-Adjustable Pulley Towers: Anodized aluminum pulley risers with swivel pulleys ensure optimal rope alignment and smooth tension distribution during arm and leg exercises.
-
3-Position Headrest & Removable Shoulder Rests: Ergonomic headrest adjusts to three vertical positions, complemented by quick-release padded shoulder supports for optimal spinal alignment.
Technical Specifications Summary
| Feature / System Metric | Specification |
| Brand / Manufacturer | Elina Pilates (Spain) |
| Model Series | Aluminium Reformer HL-3 |
| Frame Material | Anodized High-Grade Aluminum Alloy with Solid Wood Accents |
| Upholstery / Finish | Heavy-Duty Commercial Vinyl (Grey Finish) |
| Carriage Wheels | 8 Polyurethane Wheels with Precision Ball Bearings |
| Reformer Spring Set | 5 Springs (2 Red / Strong, 2 Green / Medium, 1 Yellow / Light) |
| Footbar System | 4-Position Adjustable Padded Footbar |
| Max User Weight Capacity | 330.7 lbs (150 kg) |
| Reformer Footprint | 90.6" L × 23.2" W × 28.3" H (230 cm × 59 cm × 72 cm) |
| Carriage Bed Height | 16.5 inches (42 cm) Mid-Height Elevation |
| Net Unit Weight | 143.0 lbs (65 kg) (Without Accessories) |
Package Contents
-
1 × Elina Pilates Aluminium Reformer HL-3 Frame & Carriage Assembly
-

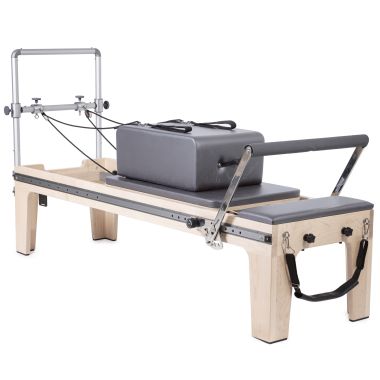

1 × Standard Padded Sitting Box
-
1 × Padded Removable Jump Board
-
1 × Padded Footbar & Built-In Standing Platform
-
1 × Pair of Height-Adjustable Aluminum Pulley Towers & Ropes
-
1 × Pair of Double-Loop Cotton Hand & Foot Straps
-
1 × Pair of Foam-Padded Handles
-
2 × Removable Padded Shoulder Rests
-
1 × Padded Foot Strap
-
1 × User Operations & Assembly Manual
Safety & Setup Guidelines
Floor Weight Rating: Ensure the target installation area is level, dry, and rated to comfortably support a total operating weight of at least 230 kg (500 lbs) including the machine, accessories, and user weight.
Perimeter Space: Maintain at least 3 feet (1 meter) of clear perimeter space around all sides of the reformer to ensure unhindered client movement and instructor guidance.
Maintenance & Cleaning: Periodically clean aluminum tracks with a soft dry cloth to prevent dust buildup on carriage wheels. Wipe down vinyl upholstery with warm water and mild soap after use.
